CBData

CBData is a data network to make use of traffic data in the traffic simulation. In the paper, we present the pipeline to transform raw road network data to simulation inputs and two paradigmatic pipelines to learn from other traffic data.

Here, we demonstrate three pipelines.

Pipeline	Content

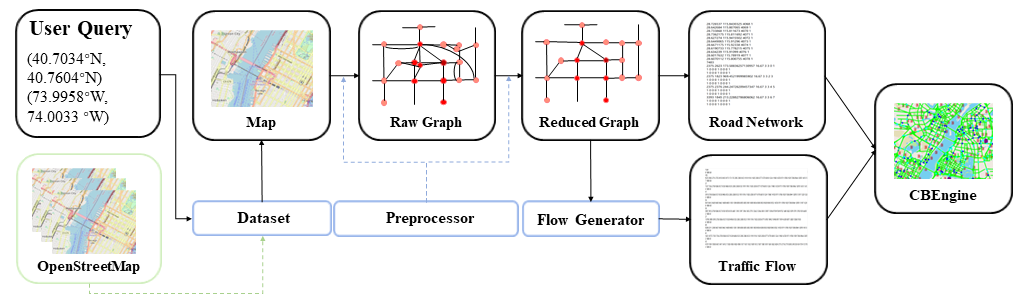

Input data transformation	Transform raw road network data to road network inputs and generate traffic flow inputs for simulation accordingly.
Learning driving	Tune driving behaviors of CBEngine according to road observation.
Learning routing	Learn to generate routes according to raw trajectory data and use it to generate traffic flow inputs for simulation.

Input data transformation

In this section, we demonstrate how to obtain large-scale input data for traffic simulation.

Our dataset is now available, including the raw road networks of 100 main cities around the world. See the Google Drive.

In the dataset, the raw road network of one city consists of three files:

two edge files:
        edge1.csv
        edge2.csv
one node file:
        node.csv

The code in /CBData/input_data_transformation is our implemented pipeline to transform the raw road network to the inputs for simulation.

To begin with, put the three files in CBData/unify_data/roadnet/data.

Run the following command at CBData/unify_data/roadnet/ to conduct transformation.

python run.py

The output road network data will be generated in the folder CBData/unify_data/roadnet/output with the name roadnet.txt.

Meanwhile, an assistant file roadnet_dict.pkl is also generated. This file helps generate the traffic flow according to the road network.

To generate the traffic flow accordingly, run the following command at CBData/unify_data.

cp ./roadnet/output/roadnet_dict.pkl ./flow/data/
cd ./flow
python main.py --numveh NUM_VEHICLES

The output traffic flow data will be generated in the folder CBData/unify_data/flow/output with the name CBEngine_flow.txt. It is noted that we also generate two other traffic flow files of SUMO and Cityflow respectively, with the file name ` SUMO_flow.txt` and Cityflow_flow.txt. Three files correspond to an identical traffic flow, only different in format.

Now we have the complete inputs for traffic simulation with CBEngine:

Road Network: roadnet.txt
Traffic Flow: CBEngine_flow.txt

Learning driving from traffic data

In this section, we demonstrate to tune the driving parameters in CBEngine using real world road observation. The tuning process is automatically implemented. Concretely, we run the simulation and count the average speed of vehicles on the road for a fixed time step. Then, we compare the speed to the real world observation. A black-box optimization tool is used to minimize the gap. By repeating the process, we tune the simulator to behave as the real world road observation.

For tuning the parameter of the driving model, run this command at /CBData/learning_from_data/driving/.

python main.py

After the learning process ends up, optimized parameters are shown at the bottom of the terminal, which can be set for CBEngine before starting the simulation. The loss curve is at /CBData/learning_from_data/driving/figs/.

Learning routing from traffic data

In this section, we demonstrate the process how we learn to generate routes from one kind of raw trajectory data. The generated routes can be then transformed into inputs of CBEngine. Note that raw trajectory data can be in various formats. The data used in this experiments is in a common format: floating car format.

Functions of projects in each folder

Folder	Function
loss_counter	Count the loss of RNN model and draw the graph
RNN	Train RNN model and generate trajtories
roadnet-match	Transfer origin Shenzhen data to formatted data
roadnet-process	Analyze data and generate RNN train data

Match raw trajectories to the road network

In this section, we will preprocess the data with three steps. First, we will clean the data, where anomaly points are removed e.g. two sequential/consecutive points in one trajectory which stay very far from each other. Second, we match the cleaned data to the road network. Finally, we extract road-level observation from the processed trajectory data. These processes are aggregated in the script roadnet-match.

Prepare

1. Open the root directory of the project.

cd ./roadnet-match

2. Make directories mentioned before.

mkdir road \
mkdir track \
mkdir process \
mkdir output

3. Copy the roadnet to ./road directory and name them Shenzhen-inter.txt and Shenzhen-inter.txt.

4. Copy all of the original vehicle flow to ./track.

Build

1. Make a directory to build.

mkdir build

2. Get into ./build.

cd ./build

3. Compile the project.

cmake .. -G "Unix Makefiles" \
make

Match

1. Run the script.

roadnet-match

Now we obtain the unified trajectory data. Specifically, cleaned data is in the folder /process, matched trajectory /output/vehicle, and road-level observation /output/road. These data will be used in the next section.

Transform matched trajectories to unified data

RNN is used for learning from data and generating trajectories with a specified OD. To train the RNN model, we need to firstly transform data from the present format to RNN project format.

1. Open the root directory of the project.

cd ./roadnet-process

2. make output directory.

mkdir output

3. Transform the roadnet from the present format to the format compatible to RNN project.

python CBEngine-to-trajGAIL.py

4. Find an OD with maximum kinds of trajectories.

python flow-to-OD.py

5. Find the entry and exit of the roadnet.

python find-in-out.py

Finally, place the data in ./output to RNN project.

Learn from unified data with RNN

After we generated all the data that RNN project needs, we copy them to /data folder under ./RNN. You can find 5 files under ./roadnet-process/output, while four of them are needed to run RNN. However, if you don’t want to train your model, do not copy these files.

cp -a ./roadnet-process/output/Binomial.csv ./RNN/data/Single_OD/ \
cp -a ./roadnet-process/output/net-in.pkl ./RNN/data/Network_in_out/ \
cp -a ./roadnet-process/output/net-out.pkl ./RNN/data/Network_in_out/ \
cp -a ./roadnet-process/output/Network.txt ./RNN/data/

Then, we can train RNN. If you want to try generating trajectories directly, you can skip this step and use the models provided with 0 and 980 epochs trained.

cd ./RNN \
python ./scripts/behavior_clone/run_bc_rnn.py

The model will be saved under folder ./Result/Single_OD.

After we trained a model, we can use it to generate trajectories with specified OD.

python RNN_generator.py --trained-epoches NUM_EPOCHS

NUM_EPOCHS is the number in the name of the model in folder ./Result/Single_OD. After that, you can check the generated trajectories under folder ./Result/Generated_OD.

Finally, we transform the generated routes to traffic flows in the standard input format of CBEngine, with parameters given in param.json.

python OD_to_flow.py

The traffic flow is in the ./flow.
